Lifecycle:
Active (Mature)
Brand:
Welwyn

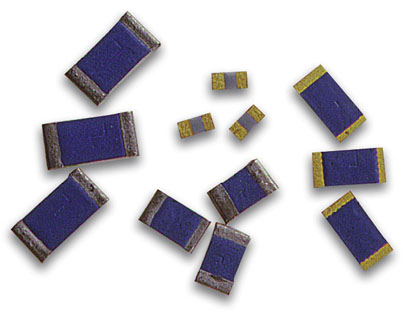

Series:
HR
| Series | HR |
|---|---|
| Application | High value / voltage |
| Mounting | SMD - wire-bond |
| Package | Chip (other size) |
| Technology | Thick film |
| Approval | None |
| Example MPN | HR1005G-10GYI |
| Termination Options | Pb-free |
| Power | 0W |
|---|---|
| Rated Ambient Temperature | - |
| De-rate to 0W Ambient Temperature | - |
| Max Ambient Temperature | 155°C |
| LEV | 150V |
| Resistance min | 100MΩ |
| Resistance max | 50GΩ |
| Critical Resistance (where applying LEV dissipates Pr) | N/A: -Ω |
| Tolerance | 5% |
| TCR | 1500ppm/°C |
| Isolation Voltage of Insulation | 500V |
| RoHS Compliant (if Pb-free) | Yes (see below) |
|---|---|
| RoHS Exemption | 7(c)-I "Pb in glass" |
| China RoHS (if Pb-free) | Contains Pb. EFUP 50 Years |
| REACH Status (if Pb-free) | Reviewed to 235 SVHCs (see below) |
| CMRT Conflict Mineral Status | Rev 6.22 Next update May 2023 (see below) |
| EMRT Extended Mineral Status | No EMRT available |
| Termination Finish (if Pb-free) | e4 - Au |
| Termination Finish (if Pb-bearing) | Not available |
| How to Specify Pb-Free | All part numbers are Pb-free |
| ECCN | EAR99 |
| Packing | Tray |
|---|---|
| Quantity | Variable |
| Nett Weight Each | 6.5mg |
| Reflow Process | Not applicable |
| MSL | Not applicable |
| Wave Process | Not applicable |
| Shelf-life | None defined |
| Launch Date | Pre-2000 |
|---|---|
| Lifecycle | Active (Mature) |
| EOL Date / YTEOL Estimate | 5 years or more. (Reviewed May 23) |
| Latest PCN Date | No PCNs |
| Alternative Part Number | - |
