Lifecycle:
Active (Mature)
Brand:
Welwyn

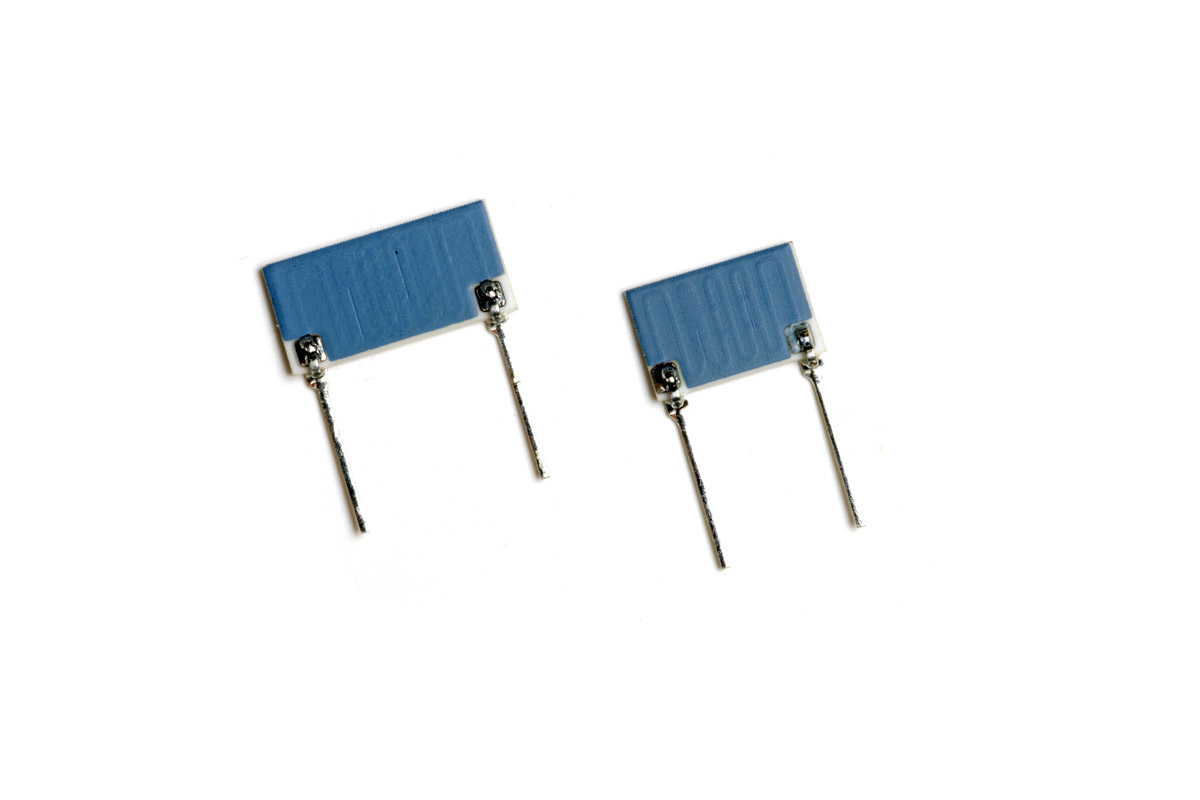

Series:
HVP
| Series | HVP |
|---|---|
| Application | High value / voltage |
| Mounting | Through hole |
| Package | Radial |
| Technology | Thick film |
| Approval | None |
| Example MPN | HVP20C-100MFB004 |
| Termination Options | Pb-free |
| Power | 2W |
|---|---|
| Rated Ambient Temperature | 70°C |
| De-rate to 0W Ambient Temperature | 155°C |
| Max Ambient Temperature | 155°C |
| LEV | 20kV |
| Resistance min | 5kΩ |
| Resistance max | 1GΩ |
| Critical Resistance (where applying LEV dissipates Pr) | 200MΩ |
| Best Tolerance | 0.25% |
| Best TCR | 25ppm/°C |
| Isolation Voltage of Insulation | Printed: 1000 & Powder coat: 2000V |
| RoHS Compliant (if Pb-free) | Yes (see below) |
|---|---|
| RoHS Exemption | 7(c)-I "Pb in glass" |
| China RoHS (if Pb-free) | Contains Pb. EFUP 50 Years |
| REACH Status (if Pb-free) | See REACH statement pdf (below) |
| CMRT Conflict Mineral Status | See CMRT Excel file (below) |
| EMRT Extended Mineral Status | See EMRT Excel file (below) |
| Termination Finish (if Pb-free) | e1 - SnAgCu |
| Termination Finish (if Pb-bearing) | Not available |
| How to Specify Pb-Free | All part numbers are Pb-free |
| ECCN | EAR99 |
| Packing | Bulk / box |
|---|---|
| Quantity | 40 |
| Nett Weight Each | - |
| Reflow Process | Not applicable |
| MSL | Not applicable |
| Wave Process | Compatible, 260+-5 deg. C, 1 or 2 x 5+-1 seconds contact time |
| Shelf-life | None defined, but solderability test prior to use is recommended after two years from date of manufacture |
| Launch Date | Dec 2008 |
|---|---|
| Lifecycle | Active (Mature) |
| EOL Date / YTEOL Estimate | 5 years or more. (Reviewed May 25) |
| Latest PCN Date | 13 Oct 25 |
| Alternative Part Number | - |
