Lifecycle:
Active (Growth)
Brand:
Welwyn
Series:

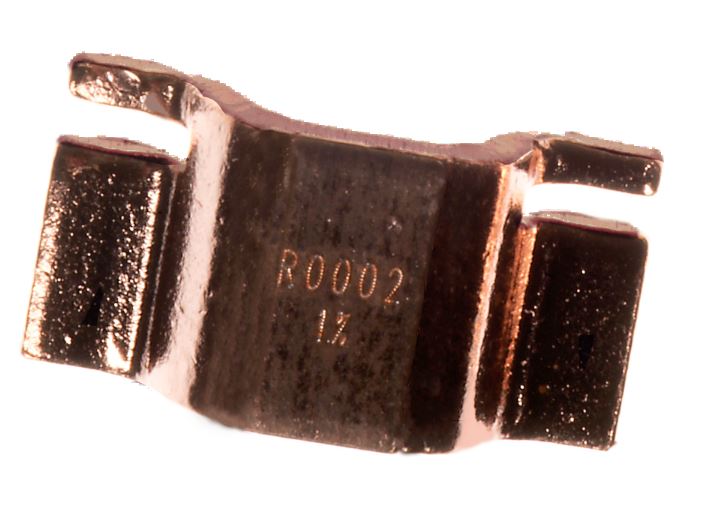

LRMAP4026
| Series | LRMAP4026 |
|---|---|
| Application | Current sense |
| Mounting | SMD - solder |
| Package | SMD 4026 |
| Technology | Metal element |
| Approval | None |
| Example MPN | LRMAP4026B-1L0FT1 |
| Termination Options | Pb-free |
| Power | 5W |
|---|---|
| Rated Ambient Temperature | 100°C |
| De-rate to 0W Ambient Temperature | 170°C |
| Max Ambient Temperature | 170°C |
| LEV | - |
| Resistance min | .2mΩ |
| Resistance max | 3mΩ |
| Critical Resistance (where applying LEV dissipates Pr) | N/A: -Ω |
| Best Tolerance | 1% |
| Best TCR | 50ppm/°C |
| Isolation Voltage of Insulation | Uninsulated: 0V |
| RoHS Compliant (if Pb-free) | Yes (see below) |
|---|---|
| RoHS Exemption | None |
| China RoHS (if Pb-free) | Compliant |
| REACH Status (if Pb-free) | See REACH statement pdf (below) |
| CMRT Conflict Mineral Status | See CMRT Excel file (below) |
| EMRT Extended Mineral Status | See EMRT Excel file (below) |
| Termination Finish (if Pb-free) | Cu (OSP) |
| Termination Finish (if Pb-bearing) | Not available |
| How to Specify Pb-Free | All PNs are Pb-free |
| ECCN | EAR99 |
| Packing | Plastic tape & reel |
|---|---|
| Quantity | 1000 |
| Nett Weight Each | 0.23 - 0.46g |
| Reflow Process | Pre-heat: 30s to 45s at 180°C, Solder: 20s to 40s at 250°C, Peak: 260°C |
| MSL | 1 |
| Wave Process | Not compatible |
| Shelf-life | None defined, but solderability test prior to use is recommended after two years from date of manufacture |
| Launch Date | Mar 2022 |
|---|---|
| Lifecycle | Active (Growth) |
| EOL Date / YTEOL Estimate | 5 years or more. (Reviewed May 25) |
| Latest PCN Date | 14 Nov 25 |
| Alternative Part Number | - |
